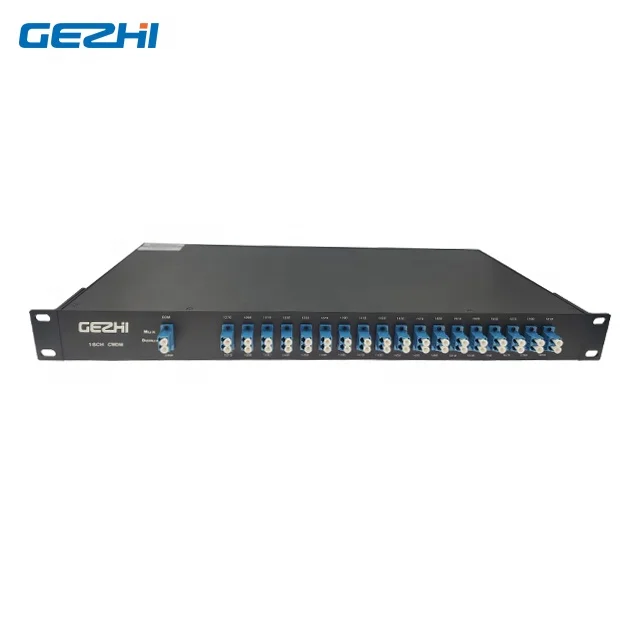

18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount

Brand Name : Gezhi or OEM

Model Number : CWDM18A27RU

Certification : CE RoHS,ISO9001

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : USD >= 1 pieces $100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Channel Number : 4, 8, 16, 18 or Customized

Channel Spacing : 20nm

WarranUsety Time : 3 years

Use : WDM System

Type : FTTx Solutions

Contact Now

Product description

18CH CWDM Module CWDM Mux Demux 16 ch Dual Fiber Multiplexer 1U 19' Rack mount

The CWDM MUX + DEMUX over dual fiber is a universal device capable of coming up to 18 optical signals into a fiber pair. It can support up to 18 CWDM wavelengths between ITU-T G.694.2 1270 nm to 1610 nm in 20 nm increments or ITU-T G.652 1270 nm and 1290 nm.

We provide a complete portfolio of CWDM MUX DEMUX over dual fiber or simplex fiber, with packages of 19″ 1RU rack mount chassis, LGX Metal box or Plastic ABS box, custom wavelength channels are available. The products are Telcordia GR-1221/1209-CORE qualified, and RoHS compliant.

18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount

18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount

18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount

18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount

Feature

♦ Low Insertion loss

♦ Wide pass band

♦ High Channel Isolation

♦ High Stability and reliability

♦ Epoxy-free on Optical Path

PRODUCT SPECIFICATIONS
Parameter
Unit
CWDM Mux Demux
Channel Spacing
nm
20nm
Center Wavelength
nm
1270~1610 or 1271~1611
Channel Passband
nm
±6.5
Channel Number
/
4CH
8CH
16CH
Insertion Loss
dB
<1.5
<2.5
<5.5 or <3.5(with skip)
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
℃
-20~+75 (-40~+85 available)
Storage Temperature
℃
-40~+85
Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Product packaging
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
Finished Item

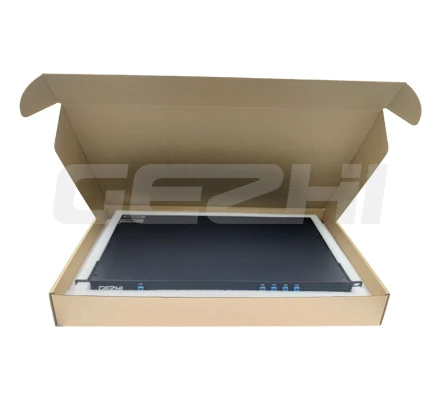

Inner Package
Inner Box
Carton

Test Enviroment
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
18CH CWDM Module CWDM Mux Demux 16 Ch Dual Fiber Multiplexer 1U 19'' Rack Mount
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
100% Testing Before Shipment
Optical Spectrum Analysis

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
