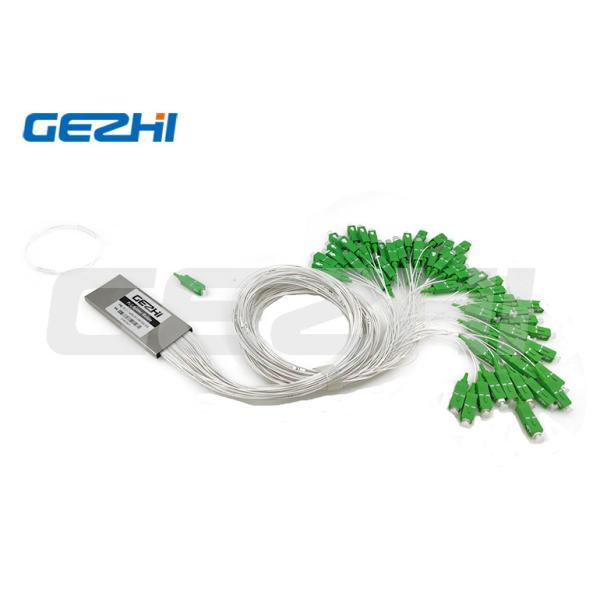

1×64 Single Mode Blockless PLC Splitter Fiber Optic Splitter for FTTX Networks

  • 1
  • 2
  • 3

Brand Name : GEZHI or OEM

Model Number : 1×64 PLC Splitter

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : US$59-US$118

Payment Terms : T/T,Western Union

Supply Ability : 5000pcs per month

Packaging Details : Paper box

Operating Wavelength : 1260~1650 nm

Fiber Type : G657 or customized

Insertion Loss : ≤20.4 dB (1×64)

Loss Uniformity : ≤2.0 dB (1×64)

Return Loss : ≥50 dB

Operating Temperature : -40~85 ℃

Contact Now

PLC Splitter 1×64 Single Mode Blockless PLC Fiber Optic Splitter

Product Overview

PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical

waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel

uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi provides whole series of 1xN and

2xN splitter products that are tailored for specific applications.

PRODUCT SPECIFICATIONS

Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657 or customized
Insertion Loss (dB)
≤4.1
≤7.4
≤10.5
≤13.8
≤17.1
≤20.4
Loss Uniformity (dB)
≤0.8
≤0.8
≤0.8
≤1.0
≤1.5
≤2.0
Return Loss (dB)
≥50
≥50
≥50
≥50
≥50
≥50
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
≥55
≥55
≥55
≥55
≥55
≥55
Temperature Stability (-40~85 ℃)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (℃)
-40~85
Storage Temperature (℃)
-40~85
Typies
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)
Note:
1. The insertion loss is at least 0.2dB less without connector.
2. The insertion loss for 2×N PLC would increase less than 0.3dB.
3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB

FEATURES

Low Insertion loss

Low PDL

Compact Design Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

1×64 Single Mode Blockless PLC Splitter Fiber Optic Splitter for FTTX Networks

1×64 Single Mode Blockless PLC Splitter Fiber Optic Splitter for FTTX Networks
