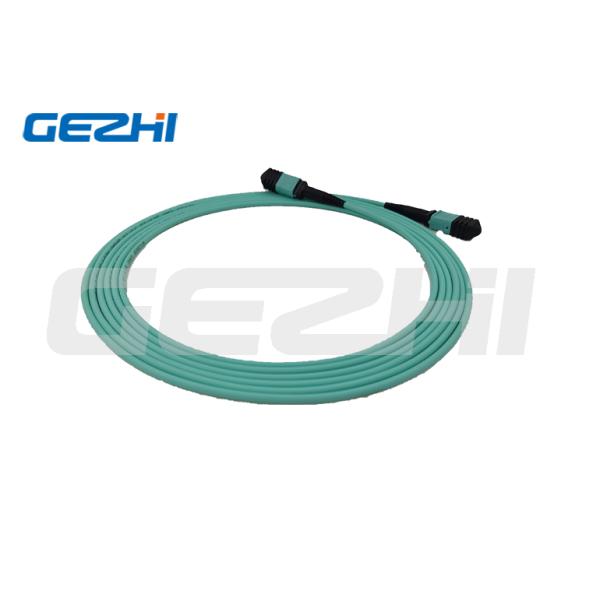

Om3 for Telecom Network MPO Patch Cord

Name: Om3 for Telecom Network MPO Patch Cord
Brand: GEZHI or OEM
Price: 1 USD

Wholesale Om3 for Telecom Network MPO Patch Cord from china suppliers

Brand Name : GEZHI or OEM

Model Number : OM3 MPO Fiber Cable

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Fiber Count : 12 /24 /48/96/144 Cores

Mode : OM3 Multimode

Outer Jacket : LSZH,OFNP ,OFNR

Polarity : Type A, B, C

Length : Customised

Connector Type : Female or Male

Contact Now

Om3 for Telecom Network MPO Patch Cord

MPO OM3 Patch Cord

GEZHI offers P grade OM3 MPO fiber optic patch cords.Its comes with multimode fiber appliies to high density in data center or telecommunication systems.

Applications

Data Center

Optical System Acess network

Storage area networking

40GbE&100GBE protocol

Specifications

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	MM OM3	8F/APC	≤0.50	≥20	≤0.35	≥20
		12F/APC	≤0.50	≥20	≤0.35	≥20
		24F/APC	≤0.50	≥20	≤0.35	≥20
		8F/PC	≤0.50	≥20	≤0.35	≥20
		12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20

Odering Information

Type	Mode	Fiber Count	Polarity	Grad	Connector A	Connector B	Polishing	Length
PCMPO	2=OS2 3=OM3 4=OM4 5=OM5	08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers	A=Type A B=Type B C=Type C	S=Standard E=Elite	M=Male F=Female	M=Male F=Female	P=UPC A=APC	01=1M 02=2M 05=5M 10=10M S=Specify

Product Packaging

Om3 for Telecom Network MPO Patch Cord

Finished Item

Inner Package

Carton

Om3 for Telecom Network MPO Patch Cord Images
